CNC Machining Centers

Based on aggregated insights from structured factory profiles within the CNFX directory, the standard CNC Machining Centers used in the Machinery and Equipment Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical CNC Machining Centers is characterized by the integration of Machine Base and Column. In industrial production environments, manufacturers listed on CNFX commonly emphasize Cast Iron construction to support stable, high-cycle operation across diverse manufacturing scenarios.

Computer-controlled machine tools capable of performing multiple machining operations with automatic tool changing.

Product Specifications

Technical details and manufacturing context for CNC Machining Centers

Definition

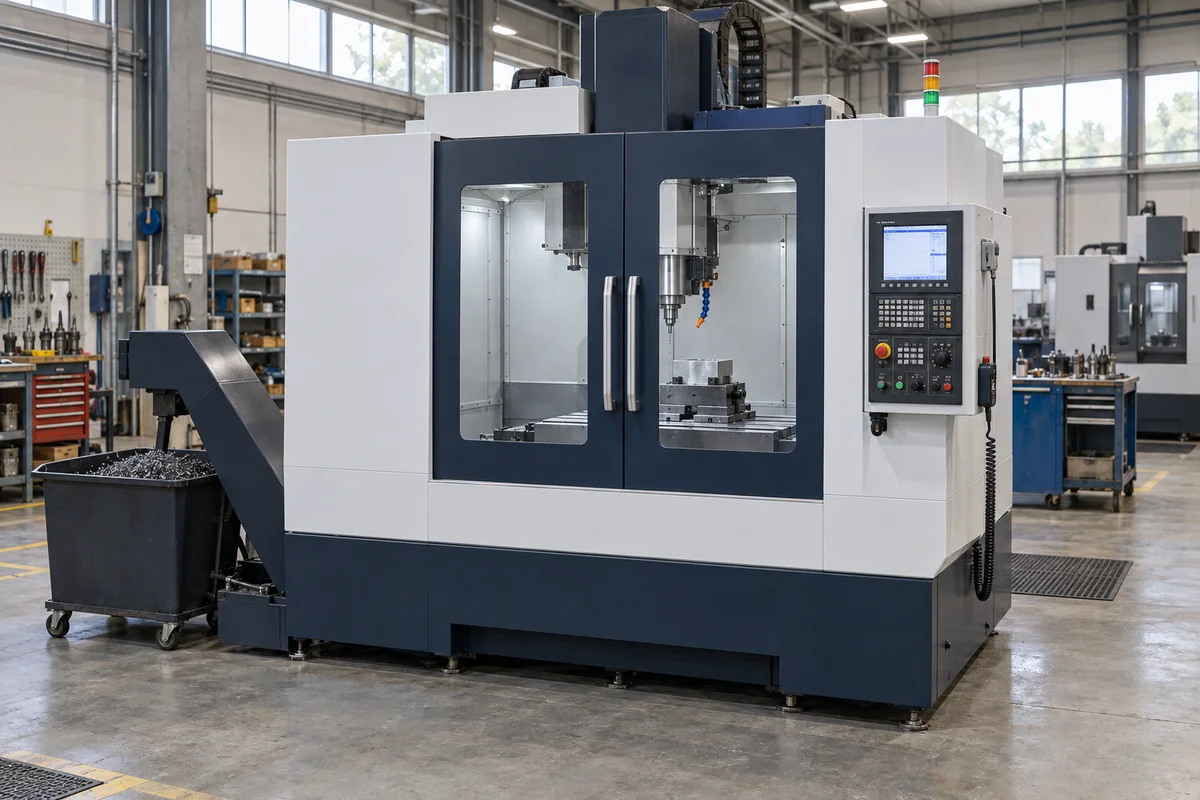

CNC Machining Centers are advanced manufacturing machines that use computer numerical control to automate the machining of complex parts. They integrate multiple functions such as milling, drilling, tapping, and boring into a single setup, featuring automatic tool changers, pallet changers, and sophisticated control systems for high-precision production.
Working Principle
CNC Machining Centers operate through programmed instructions (G-code) that control the movement of cutting tools along multiple axes (typically 3-5 axes). The machine controller interprets the program, drives servo motors to position the workpiece and tools precisely, and coordinates spindle rotation, feed rates, and tool changes to remove material and create the desired geometry.
Common Materials
Cast Iron, Steel, Aluminum Alloys, Composite Materials
Technical Parameters
  • Travel distance along X, Y, and Z axes defining the maximum workpiece size (mm) Standard Spec
Components / BOM
  • Machine Base
    Provides structural foundation and vibration damping for the entire machine
    Material: Cast iron or polymer concrete
  • Column
    Supports the spindle head and provides Z-axis movement
    Material: Cast iron or welded steel
  • Spindle Head
    Houses the spindle motor and provides rotational motion to cutting tools
    Material: Steel housing with precision bearings
  • Automatic Tool Changer
    Automatically exchanges cutting tools from the magazine to the spindle
    Material: Aluminum and steel mechanisms
  • Tool Magazine
    Stores multiple cutting tools for automatic selection
    Material: Aluminum or steel with plastic components
  • Work Table
    Holds and positions the workpiece during machining operations
    Material: Cast iron or steel with T-slots
  • CNC Controller
    Processes programming instructions and controls all machine movements and functions
    Material: Electronic components in metal enclosure
  • Servo Motors
    Provide precise motion control for each axis through feedback systems
    Material: Copper windings, steel housing, rare-earth magnets
  • Coolant System
    Circulates cutting fluid to cool tools and workpieces, and flush away chips
    Material: Stainless steel tanks, plastic tubing, aluminum pumps
  • Chip Conveyor
    Automatically removes metal chips and debris from the machining area
    Material: Steel chain or belt with plastic components

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for CNC Machining Centers.

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (atmospheric)
other spec: Spindle Speed: 500-20,000 RPM, Tool Capacity: 12-120 tools, Work Envelope: 500x500x500mm to 2000x1000x1000mm
temperature: 15-35°C (operating environment)
Media Compatibility
✓ Aluminum alloys ✓ Stainless steel ✓ Engineering plastics (e.g., PEEK, Delrin)
Unsuitable: Highly abrasive composites (e.g., carbon fiber with silica fillers)
Sizing Data Required
  • Maximum part dimensions (X, Y, Z axes)
  • Required material removal rate (cm³/min)
  • Tolerance and surface finish requirements (µm, Ra)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Ball Screw Backlash
Cause: Wear in ball screw nuts and bearings due to inadequate lubrication, contamination ingress, or excessive axial loads, leading to positioning inaccuracies and reduced repeatability.
Spindle Bearing Failure
Cause: Thermal stress from high-speed operation, improper preload adjustment, or contamination from coolant/lubricant breakdown, resulting in vibration, noise, and loss of precision.
Maintenance Indicators
  • Unusual grinding or knocking sounds from spindle or axis drives during operation
  • Visible coolant leaks around spindle seals or axis way covers, indicating seal degradation
Engineering Tips
  • Implement predictive maintenance with vibration analysis and thermal imaging to detect early bearing and ball screw wear before catastrophic failure.
  • Establish strict contamination control protocols for coolant and lubrication systems, including regular filtration and fluid analysis to prevent abrasive damage.

Compliance & Manufacturing Standards

Reference Standards
ISO 10791-1:2015 (Test conditions for machining centres) ANSI B5.54-2005 (Specification for machining centres) CE Marking (EU Machinery Directive 2006/42/EC)
Manufacturing Precision
  • Positional Accuracy: +/-0.005 mm
  • Surface Finish: Ra 0.8 μm
Quality Inspection
  • Laser Interferometer Calibration
  • Ball Bar Test for Circularity

Factories Producing CNC Machining Centers

Manufacturer profiles with relevant production capability in China

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Technical documentation
4/5
Manufacturing capability
4/5
Inspection readiness
5/5
Supplier transparency
3/5

These scores are example evaluation dimensions, not real customer ratings, country-specific buyer feedback, or live inquiry activity.

Supply Chain Commonly Integrated Components

Drive Motor

Electric motor that provides rotational power to drive the blending mechanism in pharmaceutical powder blending equipment

Explore Specs →
Vision System

An optical inspection subsystem that uses cameras, lighting, and image processing to detect defects in pharmaceutical vials.

Explore Specs →
Coating Pan

A rotating vessel used to apply uniform coating layers to pharmaceutical tablets through controlled spraying and drying processes.

Explore Specs →
Spray System

A precision fluid delivery subsystem that atomizes and applies coating solutions onto pharmaceutical tablets within an automated coating system.

Explore Specs →

Frequently Asked Questions

What materials can CNC machining centers process?

CNC machining centers are designed to process various materials including cast iron, steel, aluminum alloys, and composite materials, making them versatile for different manufacturing applications.

How does the automatic tool changer improve machining efficiency?

The automatic tool changer allows for rapid tool switching without manual intervention, reducing downtime between operations and enabling continuous, unattended machining for increased productivity.

What factors determine the positioning accuracy of a CNC machining center?

Positioning accuracy depends on the quality of servo motors, ball screws, linear guides, and the CNC controller's feedback system, typically ranging from ±0.005mm to ±0.02mm for precision machining.
